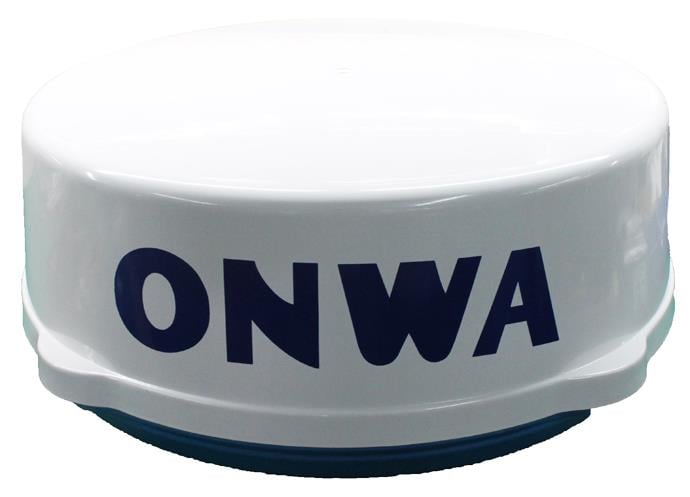

Onwa KRA-1007_N/ KRA-1007W Radome Marine Radar Antenna
- Dijital Radar Hedef Teknolojisi
- Tüm ONWA magnetron darbeli Radar antenleri arasında aynı protokolü paylaşın
- Dahili mükemmel deniz ve yağmur karmaşası algoritması
- Tamamen Dijital Sinyal İşleme
- Yüksek Performanslı Mikrodalga ön ucu
- PC'ye doğrudan veya ev yönlendiricisi aracılığıyla bağlanabilir
- DigiNav Uygulama Yazılımı ile kullanılabilir
Radiator
Slotted waveguide Array
Radiator Length
55 cm
Antenna Rotation Speed
24 RPM (±2)
Wind Resistance
Relative wind speed 100 knots(51.5 m/s)
Beam Width
Horizontal 4°
Vertical 25°
Sidelobe
Within ± 20° off mainlobe; less than -18 dB
Outside ± 20° off mainlobe; less than -23 dB
Polarization
Horizontal
Transceiver Module (contained in Radome)
Transmitting Tube
MSF1421B or MAF1421B
Frequency
9410 ± 30MHz (X-band)
Pulse Length PPR
0.08 µ S/2100 Hz(0.125, 0.25, 0.5, 0.75, 1.5 nm)
0.3µ S/1200 Hz(1.5, 2, 3 nm)
0.8 µ S/600 Hz(3, 4, 6, 8, 12, 16, 24, 36nm)
Warm Up time
1:30 minutes
Peak Output Power
4 kW nominal
Modulator
FET Switching Method
IF
60MHz
Tuning
Automatic or Manual
Receiver front end
MIC (Microwave IC)
Bandwidth
Tx pulselength 0.3 µ S and 0.08 µ S: 25 MHz
Tx pulselength 0.8 µ S: 3 MHz
Duplexer
Circulator with Diode Limiter
WIFI Module (For KRA-1007W ONLY)
Standard: IEEE802.11n, IEEE802.11g, IEEE802.11b
Channels: 1~11
Frequency Range: 2.4-2.4835G
Transmit Power:15-20dBm
Environment
Temperature
Antenna unit: -25 to +70°C
Humidity
Relative humidity 93% or less at 40°C
Power Supply
10.5VDC to 40.0 VDC Built-in Power-Supply
