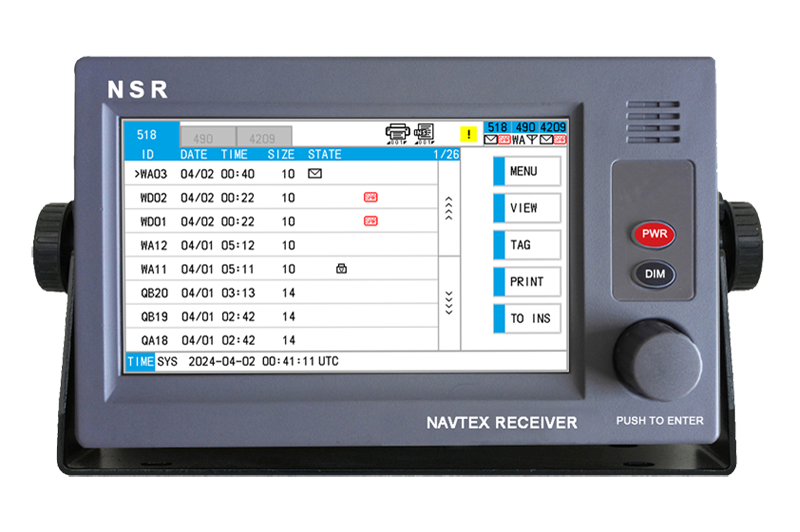

NSR NVX-1000 NVX-3000 NAVTEX
NSR's new generation of NAVTEX Receiver:
- SDR (Software Defined Radio) technology.
- Large LCD, 7 inch/color, touch screen operation.
- Meet the latest rules: IMO MSC.508 (105), IMO MSC.302 (87), IEC 62923-1, IEC 62923-2 and IEC 62288.
- Real three-channel receiving.
- Messages stored for 72 hours.
- Data interface to BAM/INS.
- DNV/CCS/RS/VR type approval.
| NAVTEX Receiver |
|
| Receiving Frequency: |
518kHz, 490kHz & 4209.5kHz, to receive on three channels simultaneously |
| Mode of Reception: |
F1B |
| Sensitivity: |
Better than -107dBm |
| Display |
|
| Display System: |
7 inch, color LCD, touch screen operation, 154(W) x 87(H) mm |
| Resolution: |
800 x 480 |
| Power Supply |
DC 24V (21.6V～31.2V), 10W average) |
| Environment Conditions |
|
| Operating Temperature: |
-20℃ ~ +55℃ (Receiver)
-40℃~ +55℃ (Antenna)
|
| IP Grade: |
IP22 (Receiver), IP66 (Antenna) |
| Compass safe distance: |
1.15m (standard) |
| Interface |
|
| Input sentences of NMEA IN port: |
ZDA, RMC |
| Input sentences of BAM/INS port: |
NRM, CRQ, ACK, ACN |
| Output sentences of BAM/INS port: |
ALR, NRX, NRM, ACN, ACK, ALF, ALC, ARC, HBT |
| Dimension & Weight |
|
| Weight: |
2.3 kg (Receiver) |
| Dimension: |
264(W) x 145(H) x 83(D) mm (Receiver) |
