- Comprehensive navigation data displays.
- Storage for up to 999 waypoints and 30 routes.
- 7 inch, color LCD, touch screen operation with adjustable brilliance.
- Dedicate port for BAM/INS connection.
- 3 GNSS data outputs.
- Possible to be upgraded to DGNSS.
- Meets the requirements of relative IMO and IEC regulation & standards, including IMO MSC112 (73), IMO MSC302 (87), IEC61108-1, IEC 62923-1, IEC 62923-2, IEC 62288 etc.
- DNV type approval.
- CCS type approval.
- RS type approval.
- VR type approval.
【SPECIFICATIONS】
| Model |

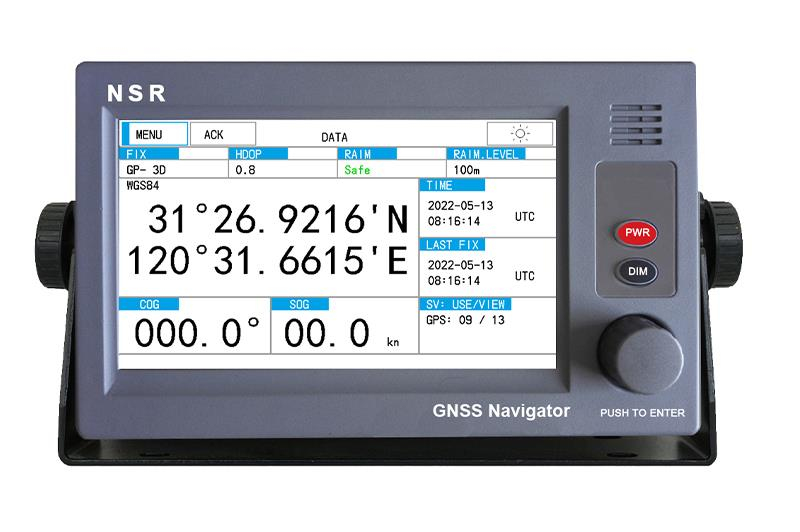

NGR-3000 / NGR-1000 |
| GPS RECEIVER |
|
| Receiving System: |
GPS, BDS, GLONASS |
| Rx Code: |
C/A code |
| Position Accuracy: |
Approx. 2.5m, 95% of the time,
horizontal dilution of precision (HDOP) ≤ 4
|
| Tracking Velocity: |
999 kts |
| Position-fixing Time: |
Warm start: 30 seconds. Cold start: 45 seconds |
| Position Update Interval: |
1 second |
| DISPLAY SECTION |
|
| Display: |
7 inch, color LCD, touch screen operation |
| Fix Mode: |
GPS / GLONASS / BDS |
| Alerts: |
Lost of Position, HDOP﹥4, DGPS lost, Integrity Status |
| INPUT/OUTPUT DATA |
|
| Output Data: |
RS422, totally 3 ports,
Baud Rate 4800/9600/19200/38400 bps
|
| Sentences: |
ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, etc. |
| BAM/INS connection: |
IN / OUT, RS422 |
|
Input Data:
|
DGPS RTCM SC-10402.4 |
| Power Supply |
DC 24V (range 12 ~ 36 V), 0.25-0.50 A |
| ENVIRONMENT CONDITION |
|
| Operating Temperature: |
Antenna Unit: -40°C ~ +55°C
Main Unit: -15°C ~ +55°C
|
| Relative Humidity: |
95% at 40°C |
| IP Grade: |
Antenna Unit: IP66
Main Unit: IP22
|
| Size |
145(H) x 264(W) x 83(D) mm |
| Weight |
1.25kg (main unit) |
