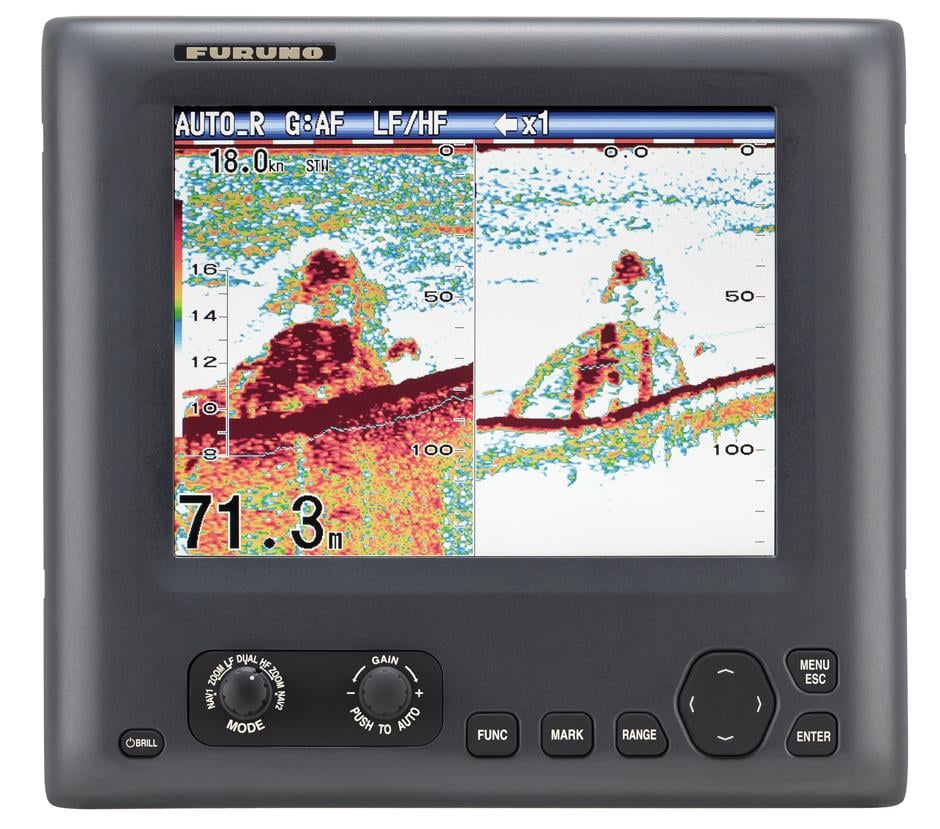

10.4" yüksek performanslı renkli LCD Balık Bulucu profesyonel balıkçılar için
FURUNO Dijital Filtre teknolojisi
kristal netliğinde hedef sunumu
1/2/3 kW güçlü çıkış gücü
50 kHz/200 kHz dönüştürücü seçeneği
Otomatik aralık ve kazanç kontrolü ile kullanım kolaylığı
Son işlem kazanç kontrolü
ekrandaki tüm mevcut dönüşlere uygulanır
Beyaz Kenar/Beyaz Çizgi özellikleri – Altta yatan
balıkları ayırın
GENERAL Frequency 50 and 200 kHz Output Power 1/2/3 kW DISPLAY Display Type 10.4" color LCD Pixel Number 640 x 480 (VGA) Display Single frequency (50 or 200 kHz), Dual-frequency, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock Basic Range 5-3,000 m (16-9,000 ft)* *m, ft can be selected in the menu Alarm Bottom, Fish (Type, Level, Depth), Temperature, Battery Language Chinese, English, Thai, Vietnamese, Indonesian, Spanish, French Range Phasing Up to 2,000 m (6,000 ft) Expansion Range 5-200 m (16-600 ft) Picture Advance Speed 8 steps: stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2, 4 Pulselength & PRR 0.1-3 ms Interface Input: RMA, RMC, GLL, GGA, GNS, MWV, VTG, VHW, MTW, MDA, HDT, HDG Output: DBS, DBT, DPT, MTW*, TLL*, VHW* * External data required. ENVIRONMENT Temperature -15°C to +55°C Waterproo ng IPX2 (front), IPX0 (rear) POWER SUPPLY 12-24 VDC, 20 W EQUIPMENT LIST Standard 1. Display Unit FCV-288 2. Installation Materials and Standard Spare Parts Option 1. Speed/Temperature Sensor ST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic), T-02MTB (Transom, bronze), T-02MSB (Thru-hull, bronze), T-03MSB (Thru-hull, bronze) 2. Connector Kit for Connection of Speed & Temperature Sensor or Temperature Sensor 3. NMEA cable MJ-A6SPF0003-050C (5 m) CO-SPEVV-SB-C 2P x 0.2LF (5/10/15 m) 4. Recti er PR-62 Transducers 1. Specify when ordering 1 kW 50 kHz: 50B-6/6B, 50B-9B 200 kHz: 200B-5S 50/200 kHz: 50/200-1T 2 kW 50 kHz: 50BL-12HR 200 kHz: 200B-8/8B 3 kW 50 kHz: 50BL-24HR 200 kHz: 200B-12H 2. For retro tting only 2 kW 50 kHz: 50B-12, 50BL-12 3 kW 50 kHz: 50F-24H, 50BL-24H
